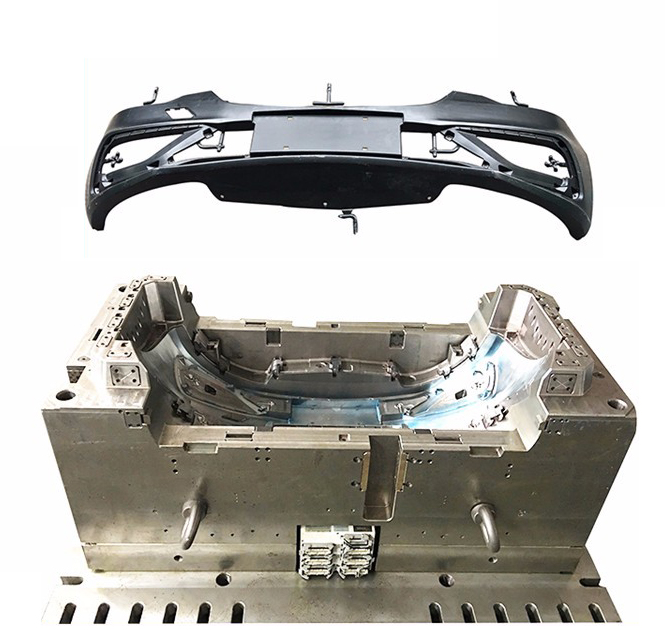

During high-volume automotive production, a Bumper Mold must operate under extreme pressure and temperature conditions. However, defects can still occur during injection molding if process parameters or mold design are not optimized.

One of the most common defects is weld lines. These occur when two flow fronts meet but fail to fully fuse. This typically happens when injection speed is too low or mold temperature drops below 25°C. Increasing mold temperature or adjusting gate positions can significantly reduce weld line visibility.

Another frequent issue is warpage. Because bumper parts are large and thin-walled, uneven cooling can cause deformation. Cooling channels must be balanced to maintain temperature variation within ±5°C across the mold surface.

Sink marks are also common, especially in thicker sections exceeding 4 mm. These are caused by uneven shrinkage during cooling. Solutions include optimizing rib thickness (typically 50–60% of wall thickness) and adjusting holding pressure, often set between 60–90 MPa.

Flow marks may appear when melt flow is inconsistent. This can be controlled by increasing injection speed or improving surface polishing of the Bumper Mold cavity to a roughness level of Ra 0.2–0.4 μm.

Another technical concern is air trapping. Proper venting design is essential, with vent depth usually between 0.02 mm and 0.05 mm to allow gas release without causing flash.

Material selection also influences defect rates. PP/EPDM blends require stable melt temperature around 200°C–240°C for optimal flow behavior.

In summary, defect control in bumper molding is achieved through a combination of mold design optimization, precise temperature management, and controlled injection parameters. A well-engineered Bumper Mold significantly reduces production defects and improves surface quality.
