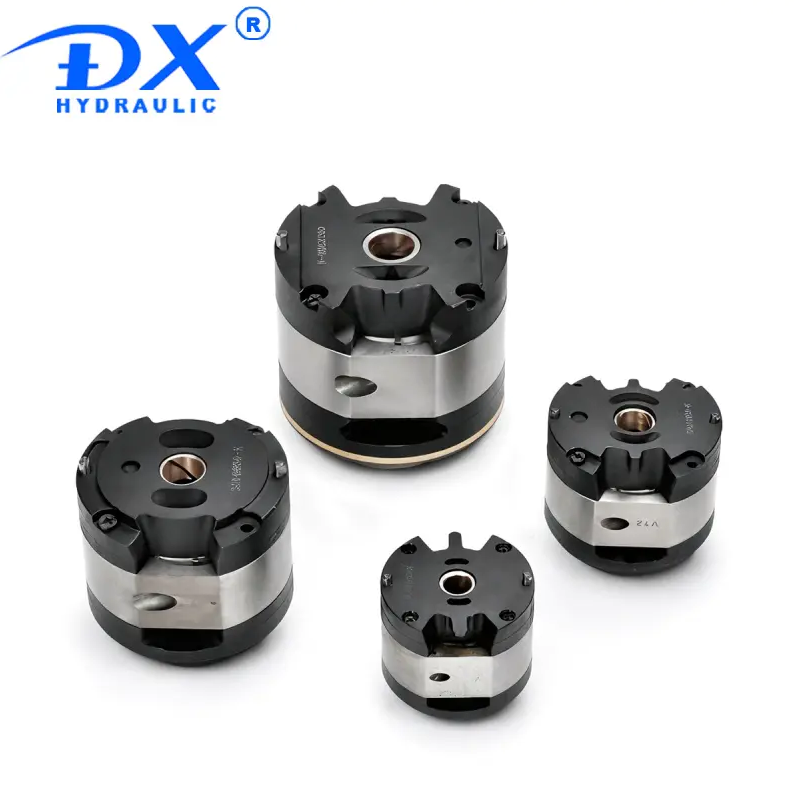

The efficiency and performance of a Hydraulic Vane Pump depend heavily on its structural design. Unlike gear or piston pumps, vane pumps rely on a rotating assembly of sliding vanes housed within an eccentric chamber.

The main structural elements include the rotor, vanes, stator (cam ring), side plates, and port plates. The rotor contains multiple radial slots where vanes are installed. These vanes can move freely in and out of the slots, allowing them to maintain continuous contact with the cam ring surface.

The cam ring is offset from the rotor centerline, creating an eccentric gap. This eccentricity is a key design factor because it determines the displacement volume of the pump. A larger offset results in higher displacement and increased flow output.

During rotation, centrifugal force combined with hydraulic pressure pushes the vanes outward. This ensures tight sealing between chambers, reducing internal leakage. The sealing efficiency is critical for maintaining volumetric efficiency, which can reach 85–92% in optimized designs.

Side plates play an important role in reducing axial leakage and maintaining pressure balance. High-quality materials such as wear-resistant alloys or composite coatings are often used to extend service life.

Some advanced hydraulic vane pump designs also include variable displacement mechanisms. By adjusting the position of the cam ring, the pump can change its output flow, making it suitable for energy-saving hydraulic systems.

The compact structure of vane pumps also contributes to lower noise levels. The smooth transition between suction and discharge phases reduces pressure spikes, resulting in quieter operation compared to gear pumps.

In summary, the structural design of the Hydraulic Vane Pump is optimized for smooth flow, efficiency, and durability, making it a reliable component in medium-pressure hydraulic systems.
