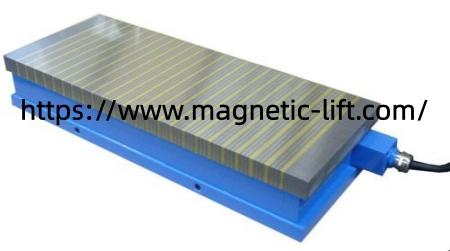

Electro Permanent Magnetic Chuck performance can be influenced by pole pitch because spacing affects how magnetic force is distributed across the working surface. For machining manufacturers, this becomes an important consideration when handling thin plates, compact components, or larger steel sections. Thickness, dimensions, material properties, surface condition, and machining method should all be reviewed before selecting a suitable configuration.

Pole pitch describes the distance and arrangement between neighboring magnetic poles. Different spacing patterns create different magnetic distribution characteristics across the contact surface. Fine arrangements are commonly associated with smaller or thinner components, while wider arrangements can be considered for larger and thicker parts. The actual suitability depends on the workpiece and machining conditions rather than spacing alone.

For thin components, pole spacing deserves particular attention. A small part may cover only a limited number of magnetic areas. If the spacing is too wide for the component dimensions, the contact pattern may not correspond well with the available surface. Fine arrangements can place magnetic poles closer together, helping distribute the magnetic field across smaller contact areas. Some industrial products specifically use fine pole configurations for grinding and thin workpieces.

Workpiece thickness is closely related to this issue. Thin material can have different magnetic coupling conditions from a thick steel block. A suitable configuration should therefore be considered together with the minimum and maximum thickness used in production. Buyers who process several material sizes should provide this information when discussing equipment with a manufacturer.

The shape of the part matters as well. A rectangular plate, narrow strip, circular component, or irregular steel section may cover the magnetic surface in different ways. Even when two parts have the same thickness, their dimensions and geometry can create different contact patterns. This is why selecting equipment according to the actual part profile can be more useful than relying on a general specification.

Surface condition is another factor that should not be overlooked. Rust, scale, chips, paint, machining marks, and uneven surfaces can create gaps between the workpiece and the working surface. These gaps can affect magnetic coupling and change the practical holding condition. Keeping the contact area clean and reasonably flat can help create more consistent contact during machining.

The machining process also influences the choice of spacing. Grinding often involves broad surface contact and controlled material removal, while milling can introduce cutting forces from different directions. Drilling and other operations may create their own positioning requirements. Product information from several manufacturers shows that different pole arrangements are designed around specific machining applications and workpiece dimensions.

For grinding applications, fine pole spacing can be useful when working with thin or small components. Some available configurations use narrow spacing specifically for precision grinding and thin plate applications. Other designs use wider spacing where larger workpieces require a different magnetic distribution.

Milling applications require another level of consideration. The workpiece should remain appropriately positioned while cutting forces act across its surface. Part dimensions, machining direction, material thickness, and the area actually covering the magnetic poles should therefore be reviewed together. Some electro permanent systems are designed for milling, drilling, and boring operations across different workpiece sizes.

Machine compatibility is also part of the purchasing process. Buyers should check table dimensions, mounting arrangements, available machining space, controller requirements, coolant conditions, and working height. The selected equipment should integrate with the existing machine rather than being considered as an isolated component.

Another useful point is the number of magnetic areas covered by the workpiece. A small component that contacts only a limited portion of the surface may behave differently from a large plate covering a broad area. Some manufacturers specify minimum workpiece dimensions or recommend sufficient pole contact for suitable clamping conditions.

Production variety can make selection more complicated. A workshop handling one standard part may choose a configuration around that specific application. A facility processing many sizes may need to consider a broader operating range. In that situation, buyers should list common part dimensions and identify which sizes appear most frequently in daily production.

Testing representative components can also be useful before placing a large equipment order. Sample testing allows the manufacturer and customer to review contact behavior under actual material and machining conditions. This can be particularly helpful when parts are unusually thin, have irregular surfaces, or involve several material grades.

Kaixinmagnetic focuses on magnetic workholding equipment for industrial applications. Customers can provide details such as material type, thickness range, part dimensions, machining process, surface condition, machine model, and expected production frequency. These details help create a clearer basis for discussing suitable configurations.

Pole pitch should therefore be viewed as part of a complete workholding evaluation. Thickness, geometry, surface quality, material properties, machining direction, and machine compatibility all contribute to the final selection. Looking at these factors together can help purchasing teams avoid choosing equipment based only on a single technical figure.

For manufacturers reviewing magnetic workholding options, Kaixinmagnetic offers configurations intended for different industrial machining requirements. Customers can visit https://www.magnetic-lift.com/ to review the available product range and consider suitable solutions according to their workpiece dimensions, machining processes, and production conditions.
